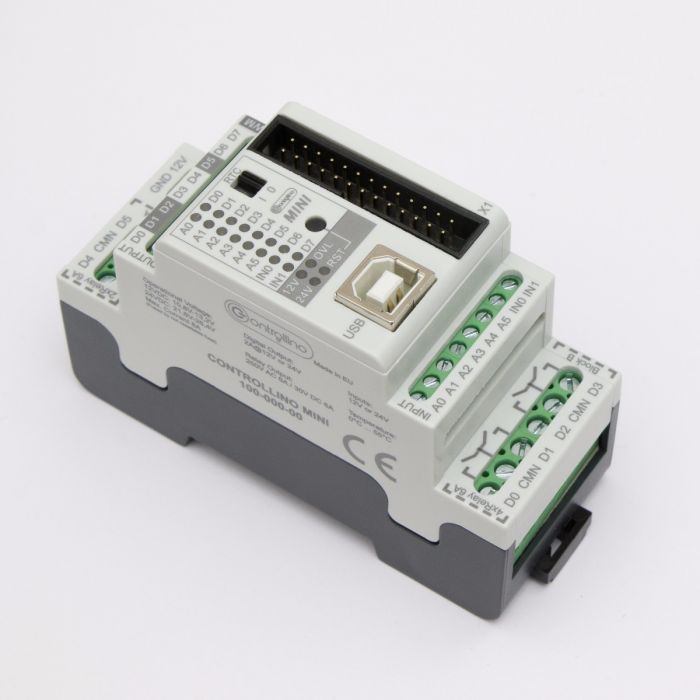

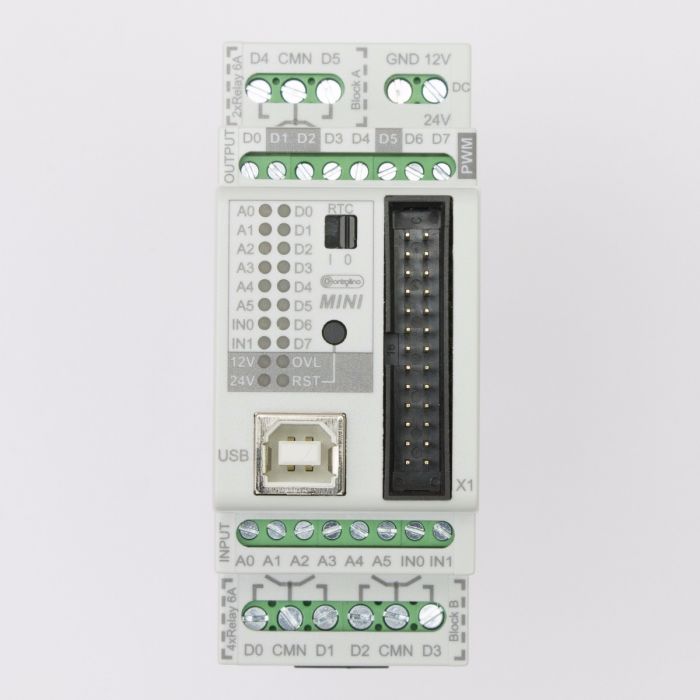

CONTROLLINO Mini
Viene con protectores IDC
Características
| CPU Type | ATmega328 |
| CPU Clock Speed | 16 MHz |
| Current Max | 8 Ampere |
| RTC support | YES |
| LAN Interface | not available |
| SERIAL Interface | 1x |
| RS485 Interface | not available |
| SPI Interface | 1x |
| I2C Interface | 1x |
| Digital Inputs | 2x (IN0, IN1) |
| Analog Inputs | 2x (A4, A5) |
| Digital/Analog Inputs | 4x (A0-A3) |
| Digital Outputs | 8x – 2A @12V or 24V (D0-D7) |
| Relay Outputs | 6x – 230V / 6A |
| Analog Outputs | 3x PWM (D1,D2,D5) |
Información Adicional
| Peso | 190 g |
| Dimensiones | 135 × 85 × 55 mm |
