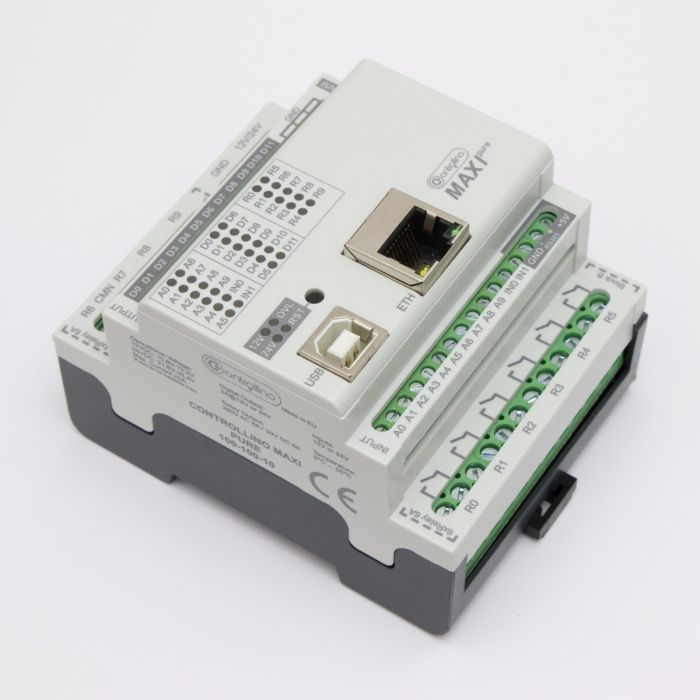

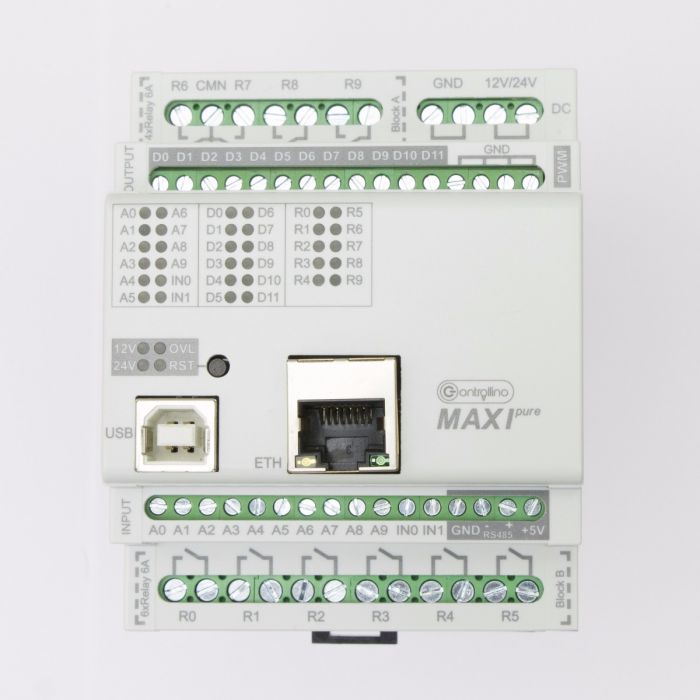

CONTROLLINO MAXI Pure
Viene con protectores IDC
Características
| CPU Type | ATmega2560 |
| CPU Clock Speed | 16 MHz |
| Current Max | 20 Ampere |
| RTC support | YES |
| LAN Interface | 1x |
| SERIAL Interface | not available |
| RS485 Interface | 1x |
| SPI Interface | not available |
| I2C Interface | not available |
| Digital Inputs | 2x (IN0, IN1) |
| Analog Inputs | -- |
| Digital/Analog Inputs | 10x (A0-A9) |
| Digital Outputs | 12x High Side Switch – 2A @12V or 24V (D0-D11) |
| Relay Outputs | 10x – 230V / 6A |
| Analog Outputs | 12x PWM (D0-D11) |
Información Adicional
| Peso | 310 g |
| Dimensiones | 135 × 90 × 55 mm |
